Reactors

Introduction
We design and fabricate custom made Reactors GMP and NON GMP Model with precision and finesse and provide desired buffing finish from Matt to Mirror reflecting to the present needs and future demand of our clients.

Types of Reactors

Jacketed Reaction Vessel :-

It is most suitable where heating is to be done with steam. Jacket height is usually up to the liquid height in the vessel. Jacket can be fabricated in one piece or can be divided into number of parts and all parts operating in parallel. For higher flow segmental jacket is preferred when downstream vapors are used as heating medium, plain jacket is preferred.
Spiral baffling can be provided in the jacket.. It helps to induce turbulence and increase the heat transfer coefficient.

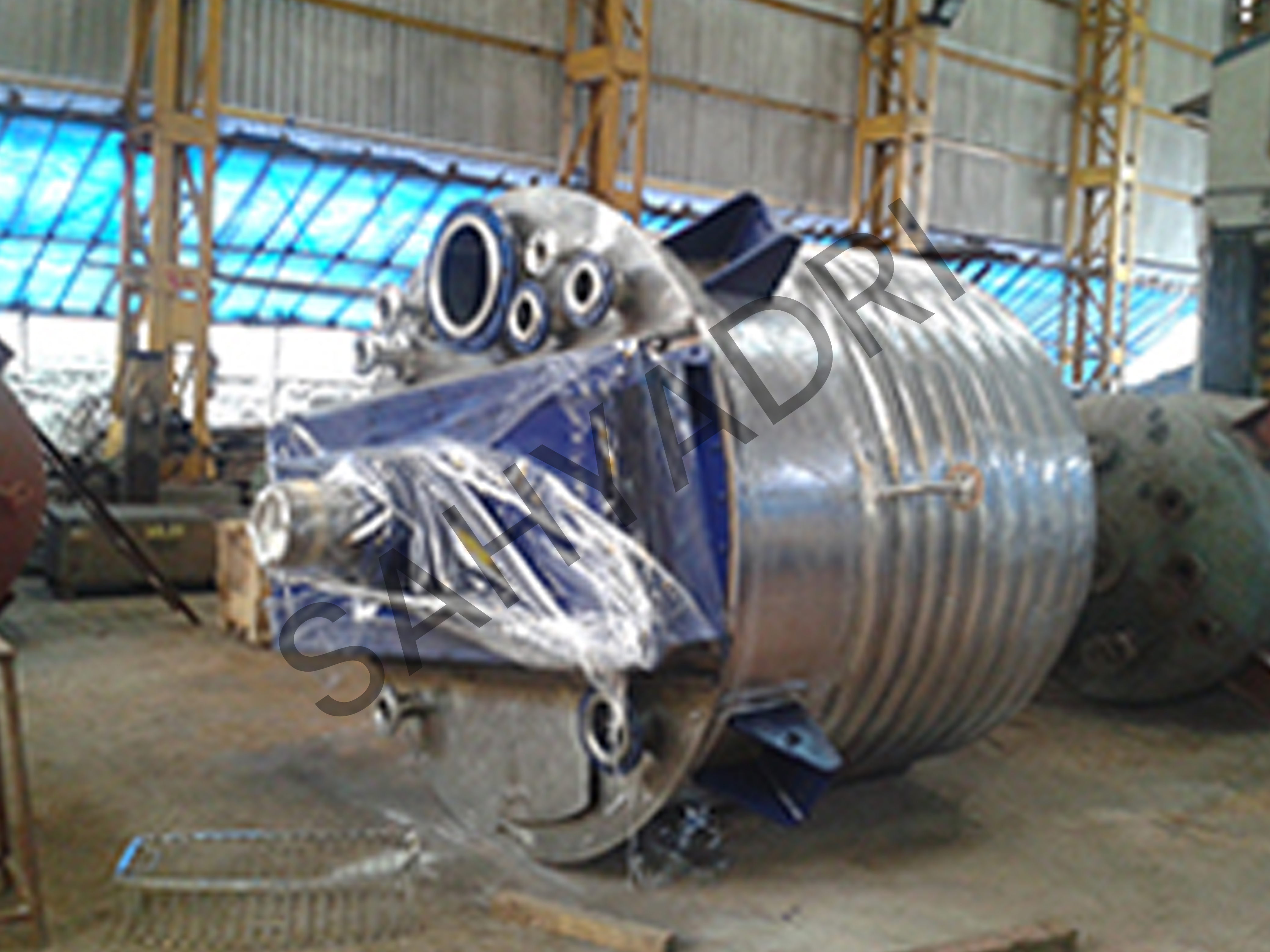

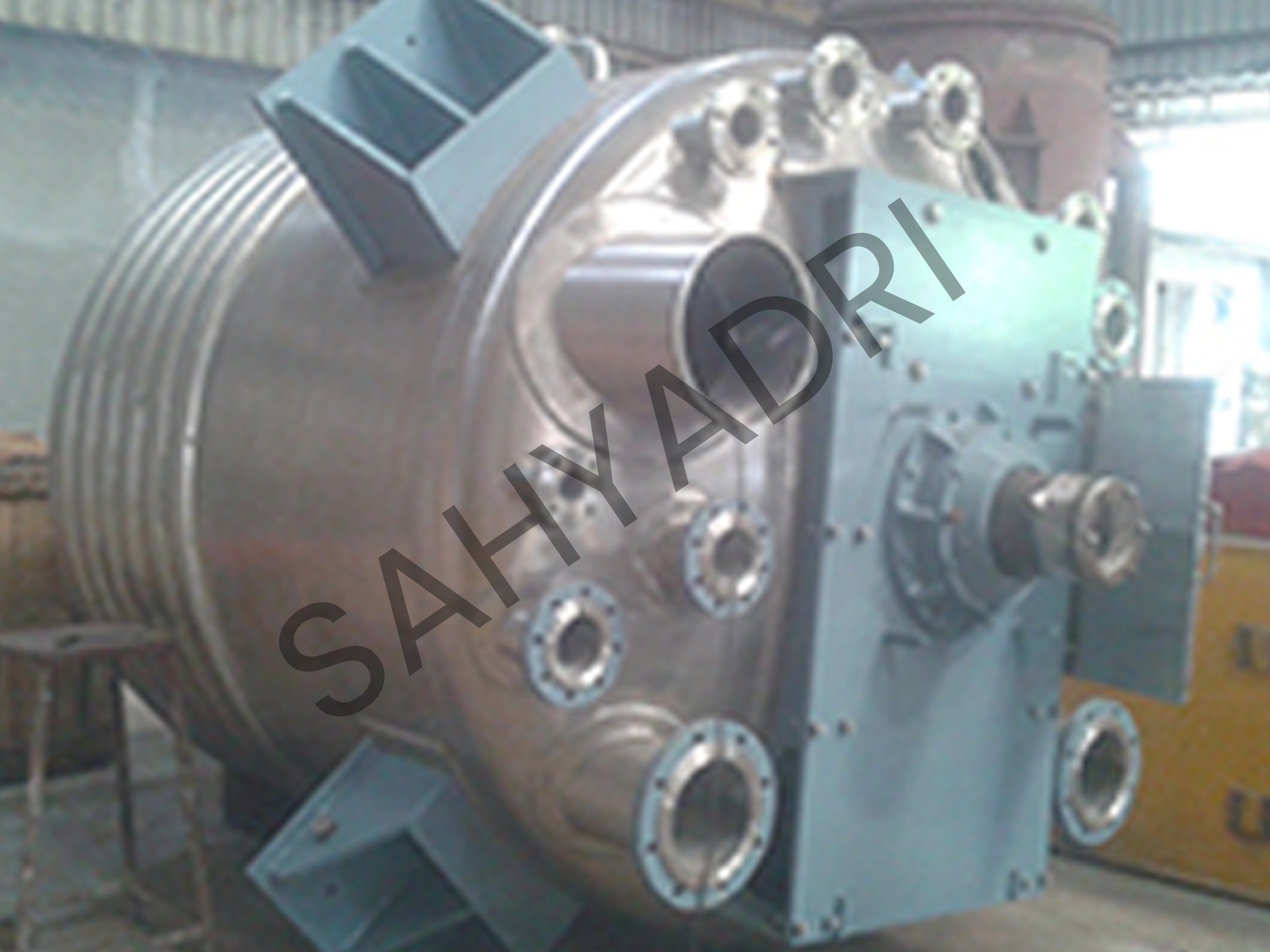

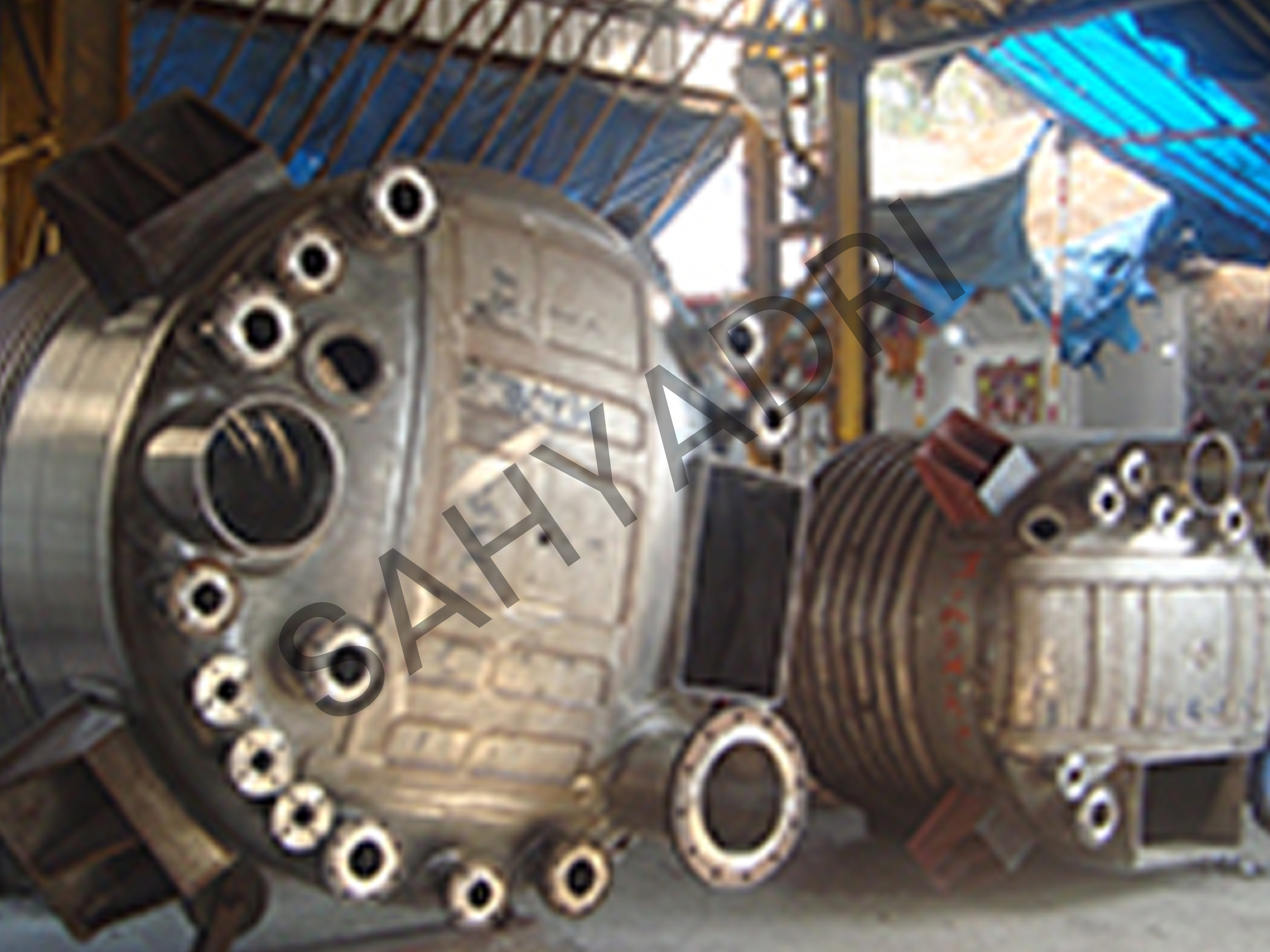

Limpet Reaction Vessel:-

Limpet helps to provide high velocity and high turbulence. It also helps to provide strength to the vessel wall. It provides structural rigidity which is an advantage for high temperature operation. To have flexibility and high efficiency the Limpet can be divided into multiple zones.

  • Design Code: ASME SEC VIII DIV 1
  • Manufacturing Range of Volume: 0.5KL To 35 KL
  • Material Of Construction : SS316L, SS304, IS 2062 GR-A/B, SA516-GR-70
  • Application Industries:-
    Pharmaceuticals Industry
    Chemical Industry
    Paint Industry
